Integrated Filling and Capping Workflow for 510 Cartridge Production
For manufacturers handling standard 510 cartridges, the CFM-03 brings filling and capping into one connected production process.
Instead of moving products between separate filling and capping stations, operators can complete both steps within a controlled workflow. This helps reduce unnecessary handling, keep the production sequence organized, and support more repeatable results from batch to batch.
The system is a practical fit for teams that have outgrown syringe filling or separate manual capping steps and now need a more structured cartridge production setup.
Tell us your cartridge type, target filling volume, and expected daily output. Contactez notre équipe to confirm the suitable configuration, pricing, and lead time.
How the CFM-03 Controls Filling and Capping in One Workflow
For cartridge manufacturers, the key challenge is not only filling speed. The real issue is keeping cartridge positioning, fill volume, and capping pressure consistent across repeated batches.
The CFM-03 brings filling and capping into one connected workflow, helping reduce manual transfer between separate stations and making daily cartridge production easier to manage.
What to Check in the Video
- •Cartridge positioning on the rotary platform
- •Controlled filling for 0.2–2 mL cartridge formats
- •Capping movement designed for repeatable sealing
- •Touchscreen operation for easier process control
- •One workflow from filling to final capping

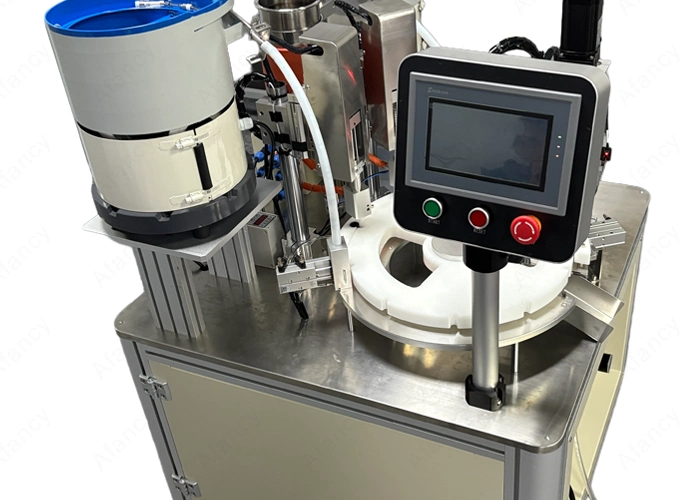

Machine Configuration Overview
The CFM-03 integrates the filling unit, capping station, cartridge handling platform,
material delivery system, and touchscreen control interface into one compact production setup.
CFM-03 Technical Specifications
| Compatible Products | Standard 510 cartridges and similar cartridge formats |
| Filling Volume | 0.2–2 mL |
| Capping Way | Capuchonnage motorisé |
| Filling Way | Remplissage motorisé |
| Source de courant | CA 100–240 V, 50/60 Hz |
| Type d'opération | Système de contrôle à écran tactile et automate programmable |
| Production | 1,500–3,000 pcs/hour |
| Dimensions de la machine | 800*850*1350 mm (31,5*33,5*53 pouces) |
| Poids net | 300 kg (660 lbs) |
Final configuration can be reviewed based on your cartridge type, oil viscosity,filling volume, and daily output target.
Why Manufacturers Choose CFM-03
Cartridge production requires more than filling speed. Manufacturers also need stable positioning,
controlled filling volume, repeatable capping performance, and a workflow that reduces unnecessary
handling between production steps.
More Stable Cartridge Positioning
The CFM-03 is designed to help keep cartridges organized during the filling and capping process,
reducing the inconsistency that often happens when products are moved manually between separate stations.
Controlled Filling for Repeated Batches
With a 0.2–2 mL filling range and touchscreen operation, the system supports more consistent filling
control across repeated production runs and different cartridge volume requirements.
Integrated Capping Workflow
Filling and capping are arranged in one connected workflow, helping manufacturers reduce manual transfer,
improve production organization, and maintain more repeatable sealing results.
Share your cartridge format, oil viscosity, target filling volume, and expected daily output.
Our team can help confirm whether the CFM-03 is suitable for your production setup.
Why Manufacturers Choose CFM-03
Cartridge production requires more than filling speed. Manufacturers also need stable positioning,
controlled filling volume, repeatable capping performance, and a workflow that reduces unnecessary
handling between production steps.
More Stable Cartridge Positioning
The CFM-03 is designed to help keep cartridges organized during the filling and capping process,
reducing the inconsistency that often happens when products are moved manually between separate stations.
Controlled Filling for Repeated Batches
With a 0.2–2 mL filling range and touchscreen operation, the system supports more consistent filling
control across repeated production runs and different cartridge volume requirements.
Integrated Capping Workflow
Filling and capping are arranged in one connected workflow, helping manufacturers reduce manual transfer,
improve production organization, and maintain more repeatable sealing results.
Share your cartridge format, oil viscosity, target filling volume, and expected daily output.
Our team can help confirm whether the CFM-03 is suitable for your production setup.
FAQ CFM-03
Common questions about cartridge compatibility, filling range, production output,
and configuration support.
What cartridge types can the CFM-03 support?
The CFM-03 is designed for standard 510 cartridges and similar cartridge formats.
Final compatibility should be reviewed based on cartridge length, mouthpiece design,
filling position, and capping structure.
What filling volume range does the CFM-03 cover?
The standard filling range is 0.2–2 mL, making it suitable for many cartridge
production requirements. For special cartridge capacities or custom filling needs,
our team can help evaluate the proper setup.
Can the CFM-03 handle high-viscosity oil?
The machine can be evaluated for high-viscosity oil applications, depending on
oil flow behavior, filling temperature, cartridge opening, and target filling volume.
We recommend sharing your oil type and viscosity information before confirming the configuration.
What production output can the CFM-03 reach?
The stated production output is 1,500–3,000 pcs/hour. Actual output may vary depending
on cartridge design, filling volume, operator workflow, oil viscosity, and production setup.
Who is the CFM-03 suitable for?
The CFM-03 is suitable for cartridge manufacturers, vape hardware companies,
private-label brands, and production facilities that need a more organized filling
and capping workflow for repeated cartridge production.
What information should I provide before requesting a quotation?
To recommend the right configuration, please share your cartridge type, cartridge size,
mouthpiece design, oil viscosity, target filling volume, daily output requirement,
and power supply standard.
Send us your cartridge specifications and production target. Afancy can help confirm
whether the CFM-03 matches your filling and capping requirements.
