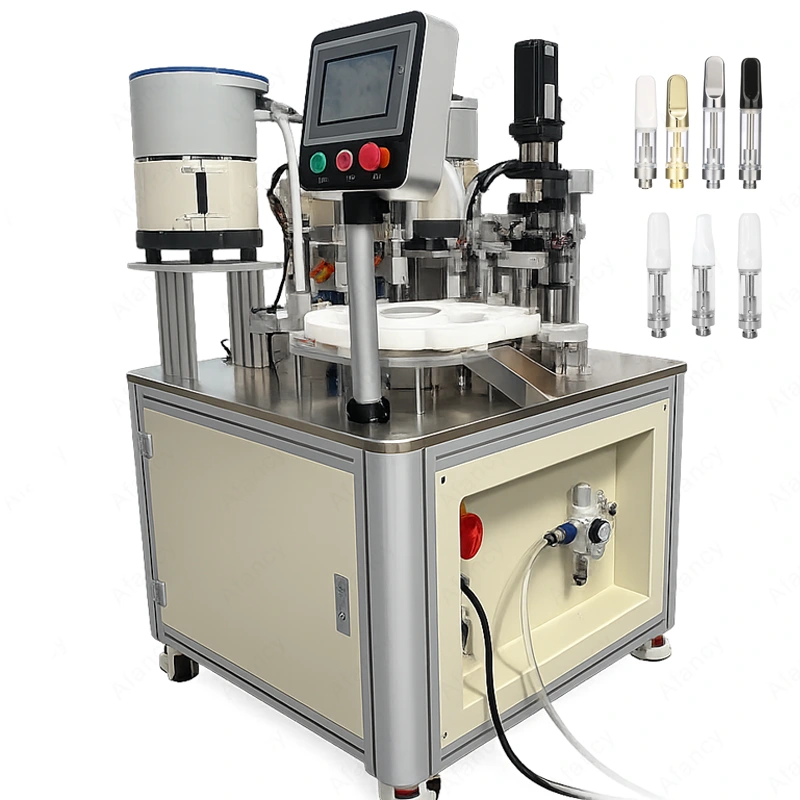

Integrated Filling and Capping Workflow for 510 Cartridge Production
For manufacturers handling standard 510 cartridges, the CFM-03 brings filling and capping into one connected production process.
Instead of moving products between separate filling and capping stations, operators can complete both steps within a controlled workflow. This helps reduce unnecessary handling, keep the production sequence organized, and support more repeatable results from batch to batch.
The system is a practical fit for teams that have outgrown syringe filling or separate manual capping steps and now need a more structured cartridge production setup.
Tell us your cartridge type, target filling volume, and expected daily output. Contact our team to confirm the suitable configuration, pricing, and lead time.
How the CFM-03 Controls Filling and Capping in One Workflow
For cartridge manufacturers, the key challenge is not only filling speed. The real issue is keeping cartridge positioning, fill volume, and capping pressure consistent across repeated batches.
The CFM-03 brings filling and capping into one connected workflow, helping reduce manual transfer between separate stations and making daily cartridge production easier to manage.
What to Check in the Video
- •Cartridge positioning on the rotary platform
- •Controlled filling for 0.2–2 mL cartridge formats
- •Capping movement designed for repeatable sealing
- •Touchscreen operation for easier process control
- •One workflow from filling to final capping
CFM-03 – Technical Specifications
Specifications are for reference. Configuration depends on application.
| Working type | Automatic |
| Compatible products | 510 cartridges |
| Capping way | Motor-driven capping |
| Filling way | Motor-driven filling |
| Power supply | AC 100–240V, 50/60 Hz |
| Operation type | Touchscreen and PLC-based control system |
| 510 cartridge capacity | 0.5mL / 1mL / 2mL / 3mL |
| Machine Dimensions | 800*850*1350mm(31.5*33.5*53 in) |
| Net Weight | 300kg(660lbs) |
Adaptable to various cartridge designs and production requirements.
Why Choose CFM-03
Built for Stable Daily Output
The CFM-03 is set up to keep production steady over long runs, without frequent adjustments or operator intervention.
It handles 510 cartridges, maintaining uniform fill levels and secure filling across repeated cycles. This is especially important when working with thicker materials that require steady movement and controlled pressure.
Send us your cartridge specs and daily output target. We’ll help confirm if this setup matches your production needs.
CFM-03 FAQ
Standard 510 cartridges and similar formats.
Yes. The system is designed to maintain stable filling with thicker materials.
Manufacturers looking to move from manual or semi-automatic production to a more controlled setup.
