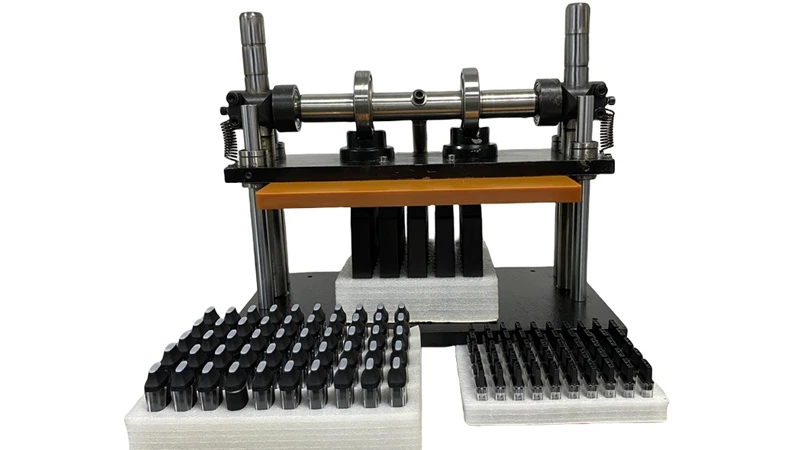

ACM-02 Manual Cartridge Capping Machine
The ACM-02 manual cartridge capping machine is designed for cartridge and disposable device assembly work.
Compatible with a wide range of 510 cartridges and disposable devices, the machine provides consistent capping force while reducing manual effort and improving production efficiency.
Its compact desktop design makes it ideal for product testing, production, and small-batch manufacturing.
Built with a durable steel frame and simple mechanical operation, the ACM-02 offers a reliable and cost-effective solution.

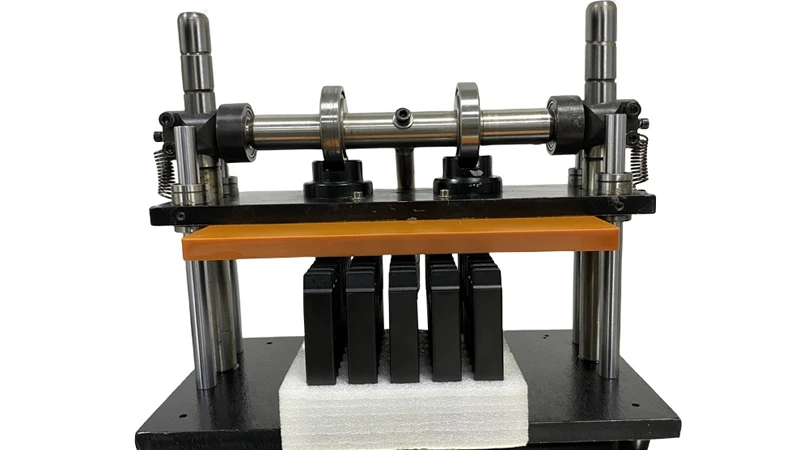

ACM-02 Manual Cartridge Capping Machine in Operation
Designed for 510 cartridges and disposable devices.
- Consistent manual capping force
- Compact desktop design
- Suitable for testing and production
- Simple mechanical operation
ACM-02 Technical Specifications
Specifications are for reference. Configuration depends on application.
| Operation Type | manual |
| Compatible Device Length | 45–190 mm (1.8–7.5 in) |
| Production Output | 4,000–6,000 pcs/hour |
| Maximum Capping Force | 2,000 kg |
| Frame Material | #45 cold-drawn steel |

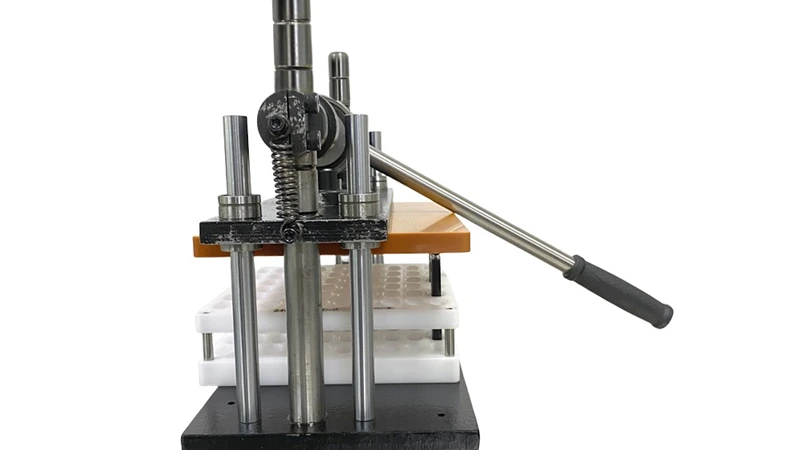

| Maximum Product Height | 145 mm (5.7 in) |
| Control Method | mechanical operation |
| Machine Dimensions | 420 × 450 × 340 mm(16.5 × 17.7 × 13.4 in) |
| Net Weight | 25 kg (55 lbs) |
