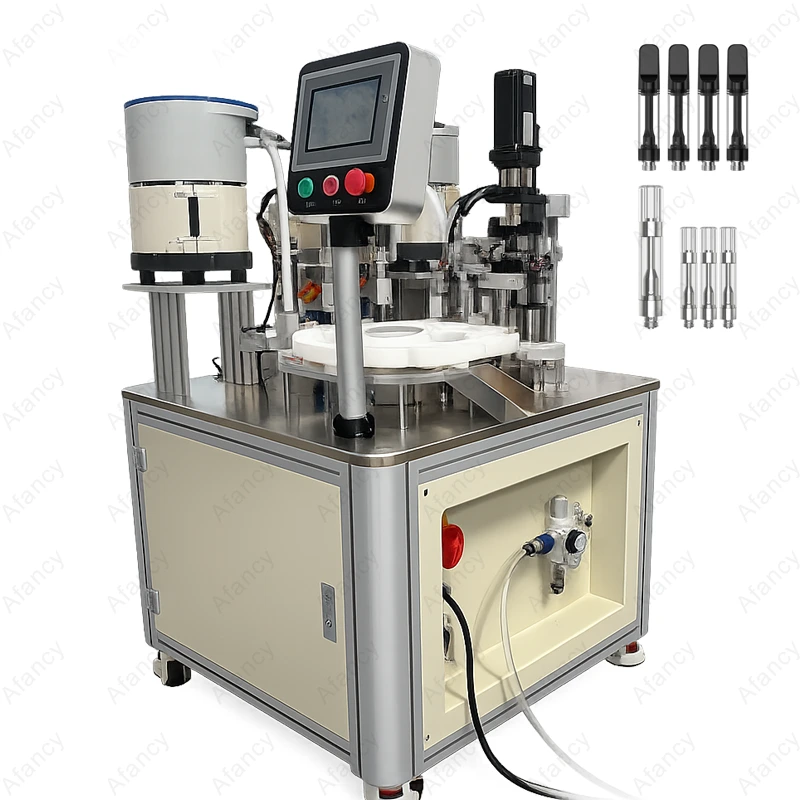

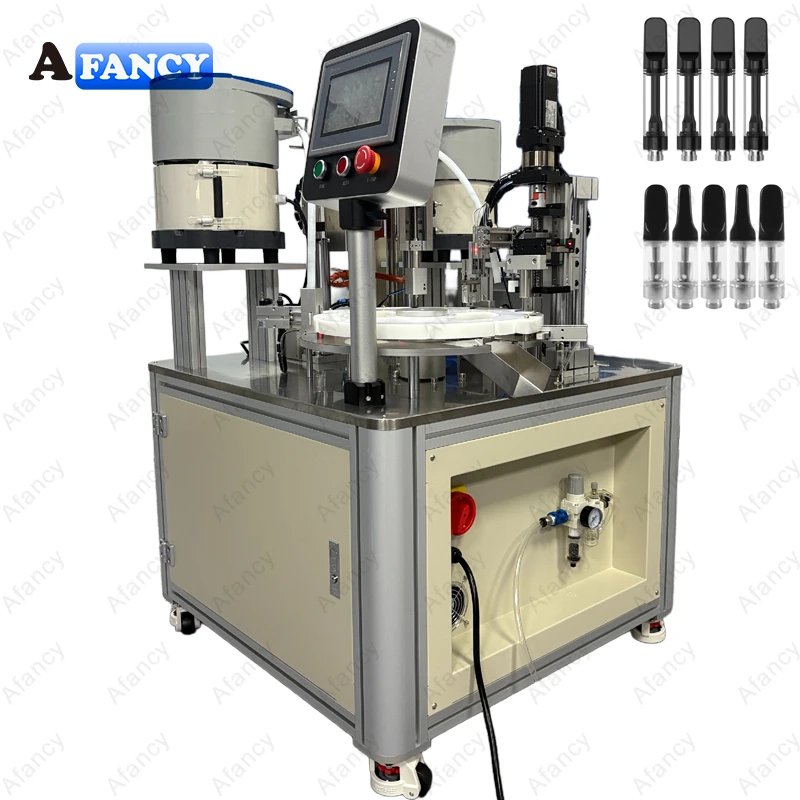

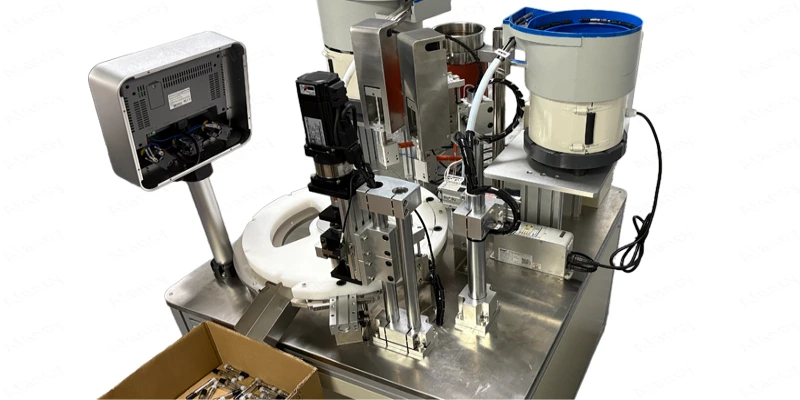

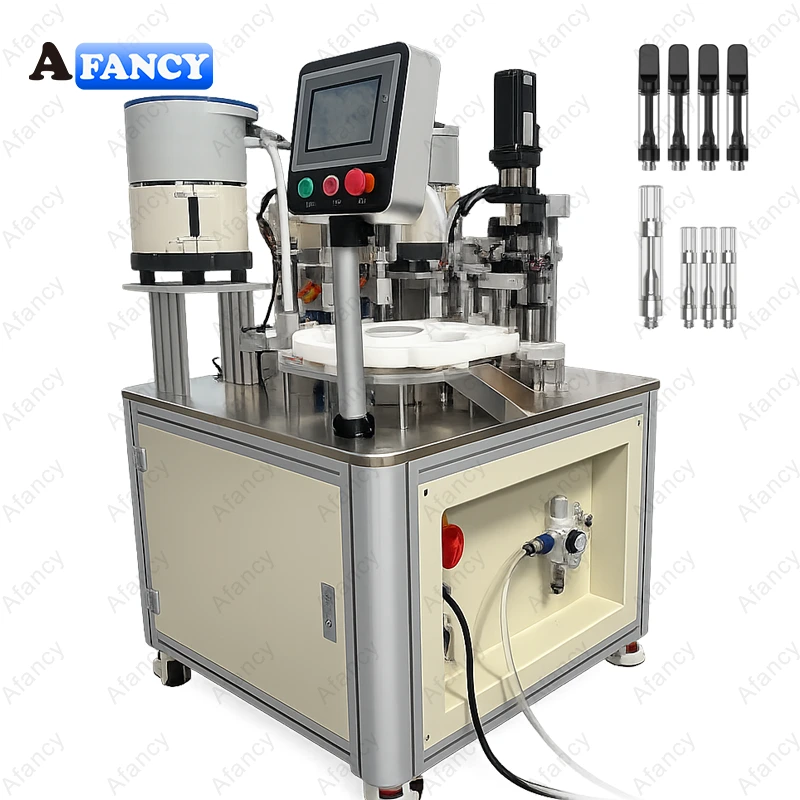

CFM-03 Cartridge Filling and Capping Machine
The CFM-03 is built to handle both filling and capping in one continuous workflow, reducing handling steps and improving overall production consistency.
It works with standard 510 cartridges and similar formats.It provides stable filling performance for high-viscosity oil, along with controlled capping force for reliable sealing.
For operations that need consistent output, the CFM-03 offers a practical step toward automated cartridge production.
📩 Contact our team to discuss your cartridge type, filling volume, and production capacity.
CFM-03 in Cartridge Production
This video shows the CFM-03 running a complete filling and capping process in one system.
From filling to final capping, each step is handled in a single workflow, saving tine and improving consistency in daily production.
https://www.youtube.com/watch?v=EvRwILHemMs
CFM-03 – Technical Specifications
Specifications are for reference. Configuration depends on application.
| Working type | Automatic |
| Compatible products | 510 cartridges |
| Capping way | Motor-driven capping |
| Filling way | Motor-driven filling |
| Power supply | AC 110V / 220V (60Hz) |
| Operation type | Touchscreen and PLC-based control system |
| 510 cartridge capacity | 0.5mL / 1mL / 2mL / 3mL |
| Machine Dimensions | 800*850*1350mm(31.5*33.5*53 in) |
| Net Weight | 300kg(660lbs) |
Adaptable to various cartridge designs and production requirements.
Why Choose CFM-03
Built for Stable Daily Output
The CFM-03 is set up to keep production steady over long runs, without frequent adjustments or operator intervention.
It handles 510 cartridges, maintaining uniform fill levels and secure filling across repeated cycles. This is especially important when working with thicker materials that require steady movement and controlled pressure.
Send us your cartridge specs and daily output target. We’ll help confirm if this setup matches your production needs.
CFM-03 FAQ
Standard 510 cartridges and similar formats.
Yes. The system is designed to maintain stable filling with thicker materials.
Manufacturers looking to move from manual or semi-automatic production to a more controlled setup.
