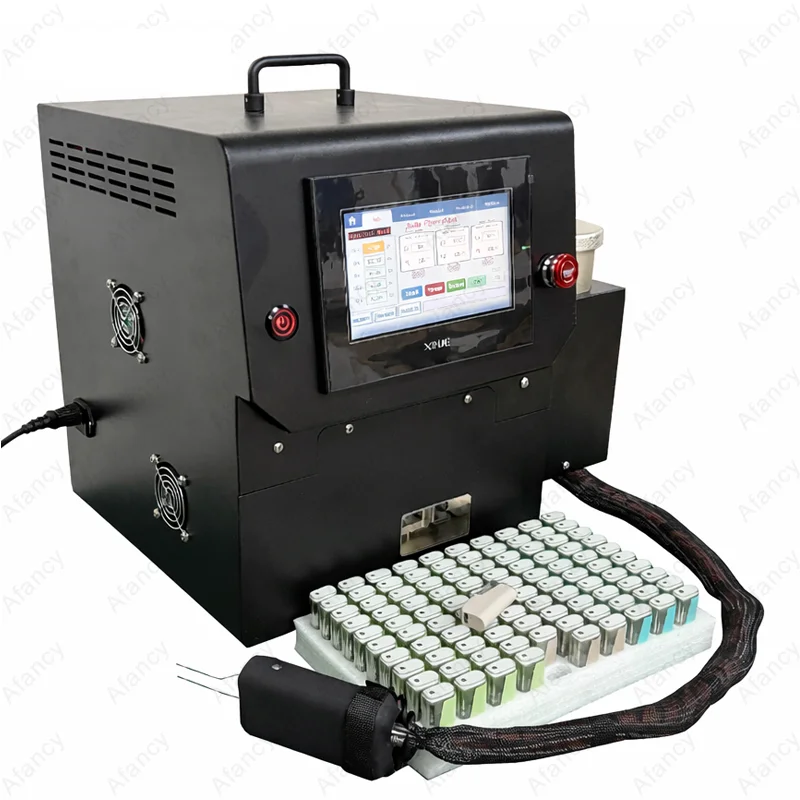

Dual-Flavor Filling for Controlled Production
The AFM-09 dual-flavor CBD cartridge filling machine uses two independent oil paths, allowing operators to handle two different oil formulations at the same time.
Instead of draining tanks between runs, manufacturers can keep both oils ready and switch as needed during production. The AFM-09 is built for licensed producers working in regulated environments where control and repeatability matter more than speed alone.
📞 Contact our team to discuss whether the AFM-09 fits your current production requirements.
AFM-09 Dual-Flavor Filling Machine Demo
This demonstration shows the AFM-09 operating with two independent oil paths during a standard cartridge filling process.
The AFM-09 is designed to work with common cartridge and disposable device formats used in regulated production.
Typical compatible formats include standard 510 cartridges, all-in-one disposable devices, and similar cartridge-based hardware. Compatibility may vary depending on device dimensions and oil characteristics.

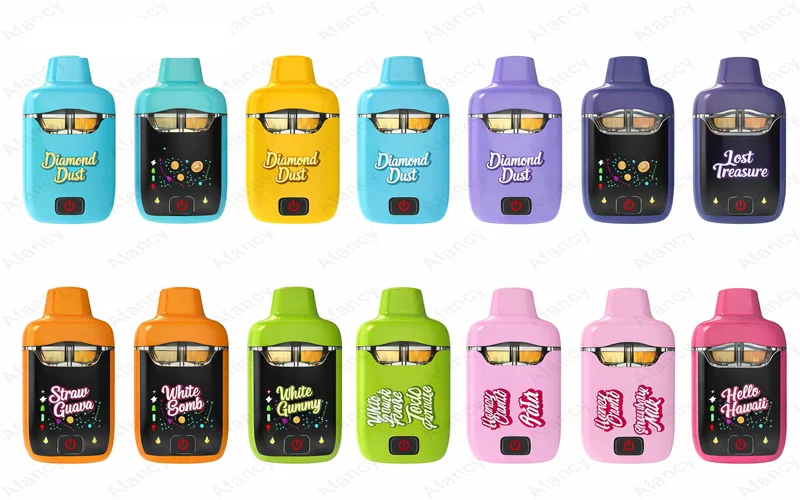

Example of cartridge and device formats compatible with dual-flavor filling applications.
AFM-09 Dual-Flavor Filling Machine – Technical Specifications
Specifications below are provided for reference. Configuration may vary based on application requirements.
| Dispensing volume range | 0.2–7.0 mL |

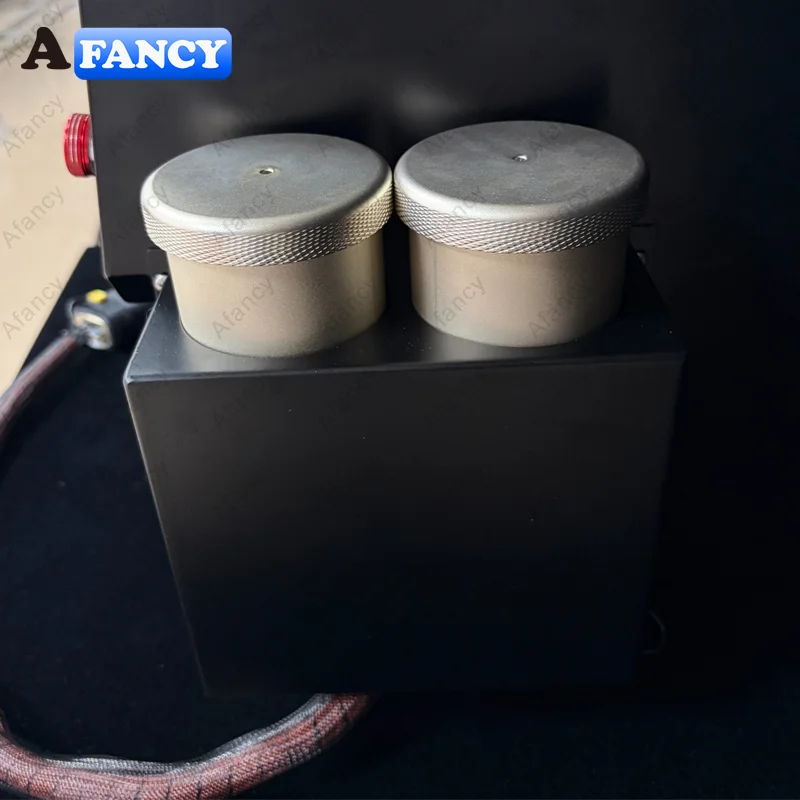

| Oil tank capacity | 2 × 800 mL (independent tanks) |
| Filling accuracy | ±0.01 mL |
| Maximum output | up to 3,000 cartridges per hour |
| Power supply | AC 110V / 220V (60Hz) |
| Input Power Capacity (Power) | 1.2kW |
| Filling repeatability | ±0.3%–±0.7% |
| Heating temperature range | 0–120°C (32–248°F) |
| Net Weight | 17kg(37.5lbs) |
| Machine Dimensions | 430*360*400mm(16.9*14.2*15.8 in) |
Why Dual-Flavor Filling Matters in Production
In many production environments, switching from one oil formulation to another takes more time than the filling process itself. Oil tanks need to be emptied and cleaned, and operators must wait before restarting.
Dual-flavor filling systems solve this issue by keeping two oil formulations available in separate paths. Instead of stopping production to change oils, operators can switch between formulations as needed, keeping the filling process consistent and easier to manage throughout the workday.
Key Features of AFM-09

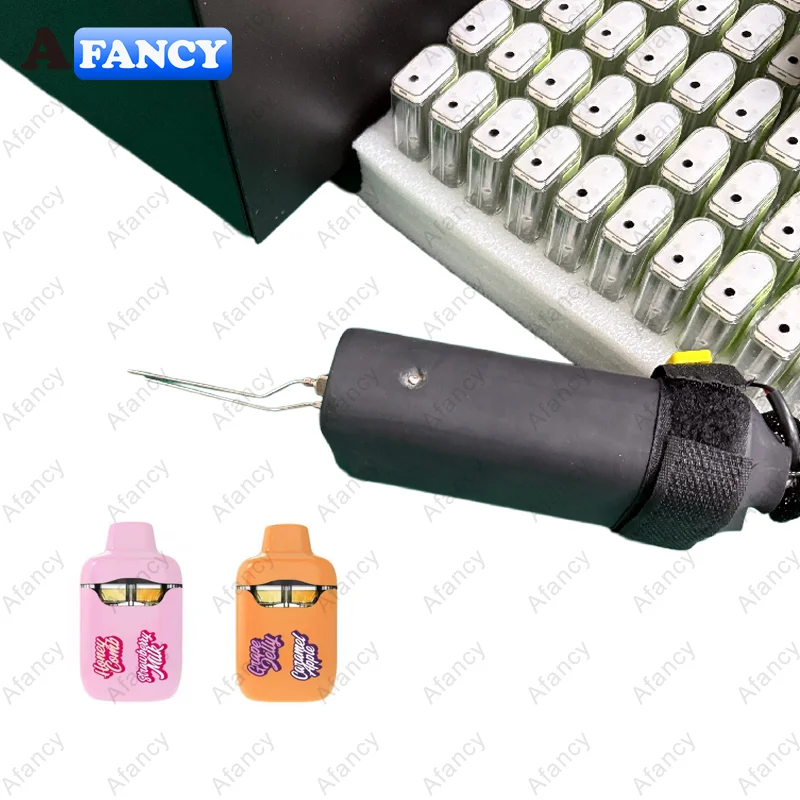

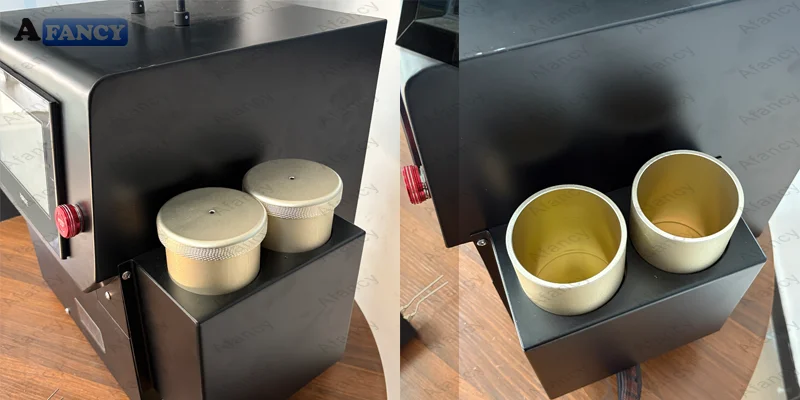

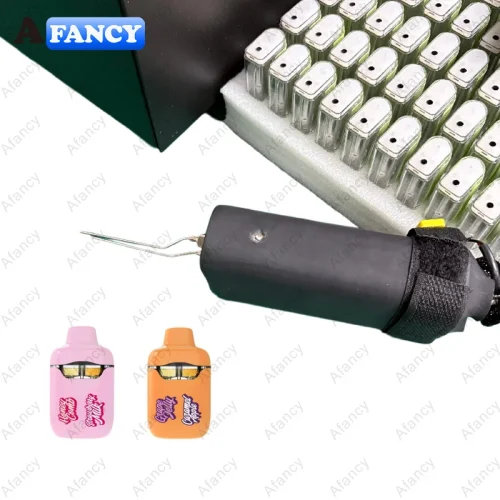

Independent Dual Oil Path System
Two fully independent oil paths allow separate formulations to be filled without mixing, supporting clean flavor separation and consistent output.

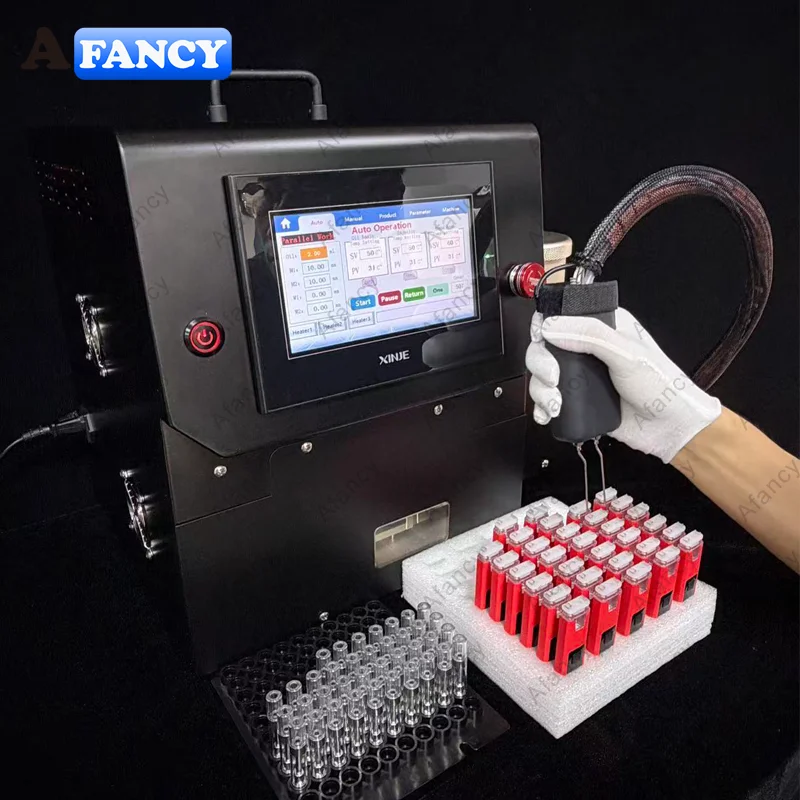

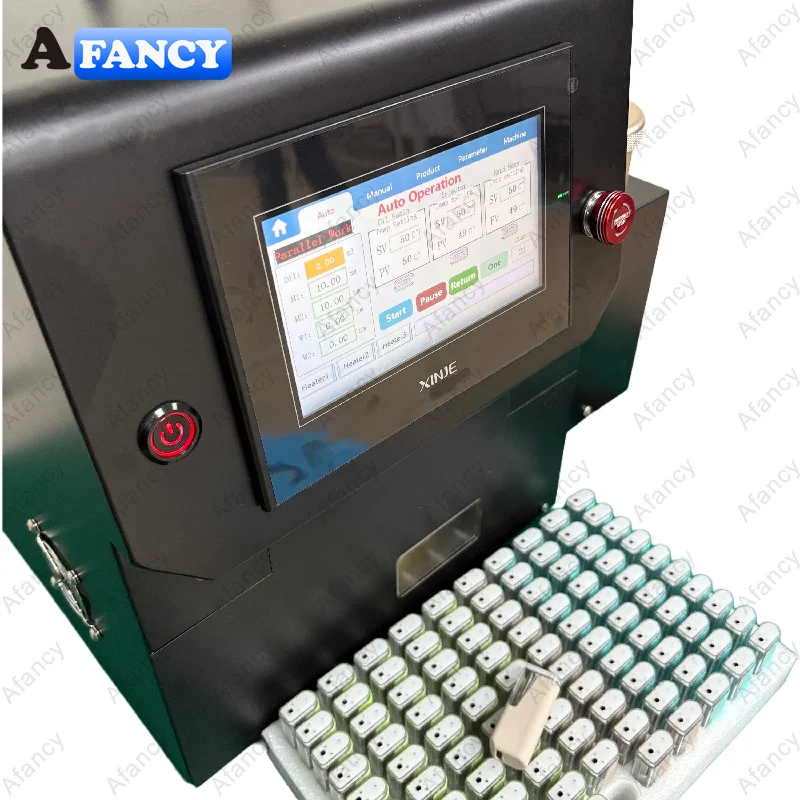

Manual-Assisted Filling Control
The AFM-09 uses manual-assisted operation, giving operators direct control during filling.
This system is well suited for small-batch production, test runs, and situations where flexibility is more important than full automation.
Consistent Filling with Different Oil Viscosities
The machine is designed to handle oils with varying viscosity levels commonly used in cartridge production.

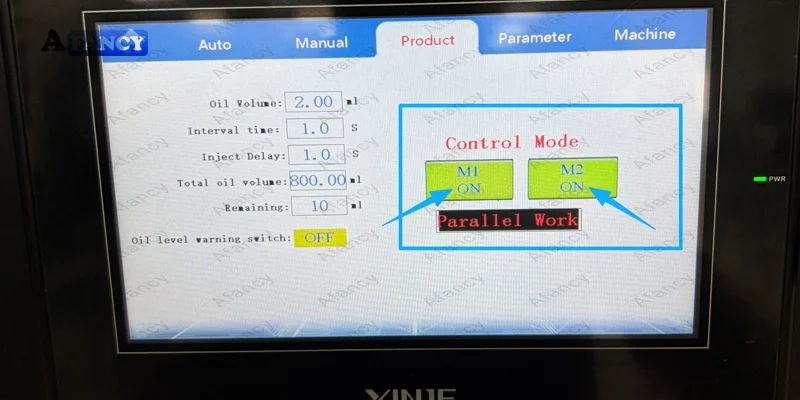

Operating Modes of AFM-09

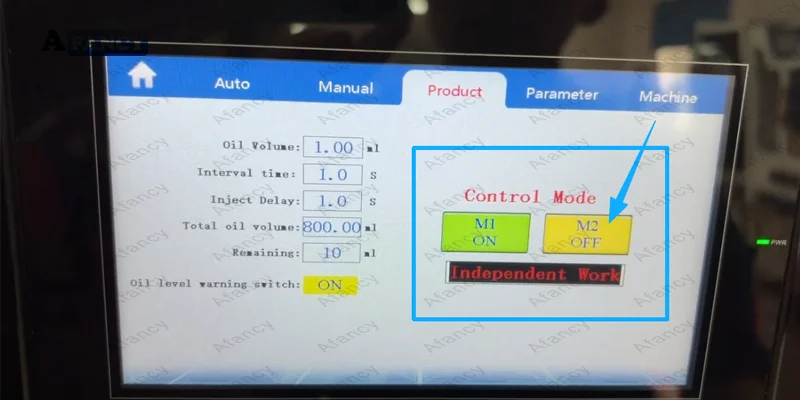

Single Oil Path Operation
Dual Oil Path Operation (Dual-Flavor Mode)
When both oil paths are activated, the AFM-09 supports dual-flavor filling using two independent oil formulations.
Each oil remains in its own dedicated path, helping maintain separation between formulations during filling.
Packaging and Shipment Preparation
Each AFM-09 unit is inspected and prepared for shipment before delivery.
Machines are securely packaged for transport to help protect critical components during handling and international shipping.
Frequently Asked Questions (AFM-09)
Q1. Is the AFM-09 intended for consumer or retail use?
A: No. The AFM-09 is designed exclusively for licensed manufacturers…
Q2. Does the AFM-09 include cartridges or disposable devices?
A: No. The AFM-09 is a filling machine only.
Q3. Is the AFM-09 suitable for high-viscosity oils?
A: The AFM-09 is designed to handle a range of oil viscosities commonly used in cartridge production.
Q4. Can the AFM-09 be integrated into an existing production setup?
A: Yes.
The AFM-09 is a stand-alone machine and can be added to existing production environments without complex integration. Layout requirements may vary depending on the facility.
Q5. What information should I provide when requesting a quotation?
A:To receive an accurate quotation, it is helpful to provide:
- Target cartridge or device type
- Oil viscosity range
- Desired output volume
- Power requirements (110V or 220V)
This information allows us to confirm suitability and configuration before quotation.
